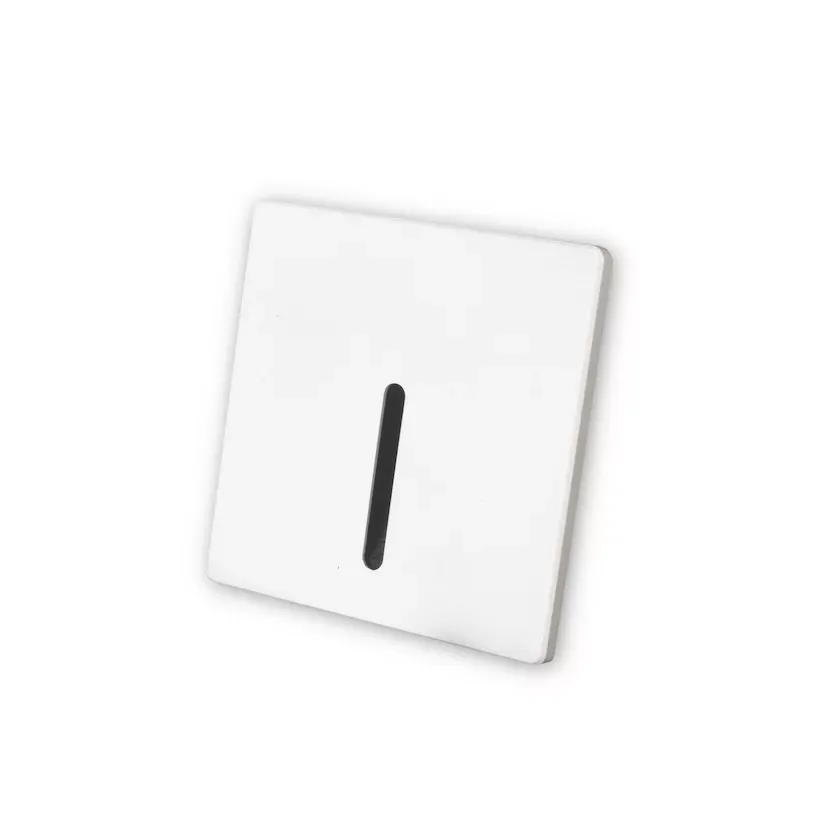

MINALOX STEP LIGHT S90 DUALWHITE RED 9W 24V 1800-4500K IP65 RAY WHITE

Stylish and Functional Recessed Wall Lighting

The MINALOX STEP LIGHT S90 DUALWHITE RED is a LED fixture in a white design that provides soft, non-dazzling, and safe lighting. Ideal for modern interiors, this lighting offers adjustable power from 3 - 9 W, a variable color temperature of 1800 - 4500 K, and additional red light. This makes it perfect for comfortable and energy-efficient orientation lighting in both residential and commercial spaces. Thanks to its IP65 protection, the fixture is suitable for demanding environments where reliability and long service life are essential.

Elegant Design and High-Quality Materials

• Minimalist square design with an elegant white finish.
• Narrow slot cover that directs light asymmetrically toward the floor, creating a pleasant lighting atmosphere without glare.
• Aluminum housing with durable finish for a sleek look and long-lasting quality.

Excellent Light Quality and Adjustability

• High color rendering index (CRI) up to 97.5 for natural color representation.
• PWM dimming (0-100%) for smooth intensity control without flicker.
• Ideal for night mode use with red light without blue components, supporting the body's natural circadian rhythm and promoting restful sleep.

Compatibility and Easy Installation

• Compatible with LOXONE, TapHome, Ampio, KNX, and other PWM solutions.
• Suitable for installation in brick walls, plasterboard, or other sheet materials.
• Supports multiple connection types (2-wire, 3-wire, 4-wire) and up to three light channels: DUALWHITE and red light.

Perfect for Orientation Lighting

• Ideal as nighttime orientation lighting with a mounting height of approximately 300 mm from the floor.
• Fixture distances of 3000 - 4000 mm provide even and comfortable lighting for hallways, rooms, or stairwells.

Specifications

Chromaticity (CCT): 1839K / 4379K / 1000K
Color: White
Frequency range: 100Hz - 20kHz
Luminous flux (lm): 48 / 103 / 30
Luminous efficacy (lm/W): 15.5 / 33.2 / 9.1
Color rendering index (CRI): 94.6 / 97.5 / 48.7
Power supply voltage: 24V DC
Operating temperature: -20°C to 50°C
Protection level: IP65
Lifespan: 50,000 hours
Warranty: 5 years

Installation and Dimensions

• Installation hole: Min. 85x85 mm in masonry, 50x72 mm in plasterboard.
• Recess depth: At least 50 mm in masonry, 38 mm in plasterboard.
• Dimensions: Width 90 mm, height 90 mm, depth 54 mm.

Design and Optics

• Design: Recessed, square, DUALWHITE.
• Fixture optics: Clear glass.
• Surface treatment: Powder coating, RAL 9003 (fine structure, white).
• Lighting angle: Asymmetric, downward directed.

The MINALOX STEP LIGHT S90 offers the perfect balance of style, functionality, and durability, making it an excellent choice for modern lighting applications.
