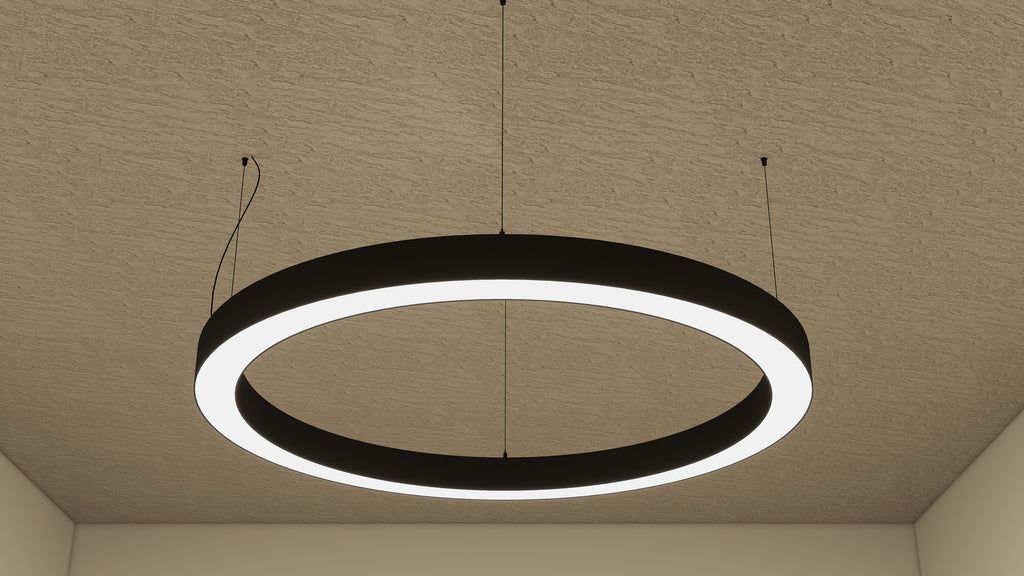

MINALOX RING DUALWHITE 5060 D800 DIR/INDIR 24V 1800-4500K Black
+4
+3
+2

MINALOX RING DUALWHITE 5060 D800 DIR/INDIR 24V 1800-4500K Black

SKU MNLXRING5060/D800/24V/1800/4500/BK
€ 799,00
Pre-order
Kleur
Please choose
Diameter
Please choose
Out of stock, available for pre-order
1
Save this product for later
MINALOX RING DUALWHITE 5060 D800 DIR/INDIR 24V 1800-4500K Black
Product Details
Brand: Minalox
Delivery time: 2-3 weken
Type: Verlichting
Colour: Black

The MINALOX RING DUALWHITE 5060 D800 DIR/INDIR 24V 1800–4500K Black is a ring-shaped pendant lamp that combines elegant design with powerful lighting, perfect for modern interiors. Below is an overview of the key features and specifications:


Key Features

  • Seamless color temperature adjustment: With DUALWHITE technology, you can easily adjust the color temperature from 1800K (warm evening light) to 4500K (fresh neutral white). Perfect for any situation, from a relaxed ambiance to task lighting.
  • Fully dimmable: The lamp offers a dimming range of 0-100%, allowing you to set the light intensity exactly as desired.
  • Direct and indirect lighting: The combination of direct (DIR) and indirect (INDIR) light ensures uniform illumination without sharp contrasts. Both light sources can be controlled separately for maximum flexibility.
  • High color rendering index: With a CRI of up to 96.7, you’ll enjoy natural and accurate color reproduction.
  • Flexible mounting: The lamp has a diameter of 800 mm and is suspended by three height-adjustable cables (1900 mm). Longer cables are available upon request for spaces with higher ceilings.
  • Premium materials: Made of aluminum with a powder coating in black RAL 9005 and a matte PC diffuser, ensuring durability and a stylish appearance.
  • Advanced PWM dimming: With a frequency range of 100 Hz - 20 kHz, the lamp provides smooth dimming without visible flicker. Compatible with smart systems like LOXONE, TapHome, Ampio, KNX, and other PWM controls.

Specifications

Feature Details
Chromaticity (CCT) DIR: 1780K/4482K, INDIR: 1778/4512K
Connection cable length (mm) 1900
Suspension cable length (mm) 1900 (adjustable)
Color Black
Frequency range 100 Hz - 20 kHz
Color Rendering Index CRI DIR 1780K CRI > 93.5 / 4482K CRI > 96.9
Color Rendering Index CRI INDIR 2740K CRI > 93.3 / 4512K CRI > 96.7
Material Aluminum + PC cover
Mounting 3-point suspension
Input voltage 24V DC
Nominal power (W) 208
Luminaire optics Matte diffuser (PC)
Surface treatment Powder coating, RAL 9005 (fine structure, black)
Operating temperature -20°C to 50°C
Design DUALWHITE
Diameter (mm) 800
Power consumption (W) DIR 54.20 / 54.60 (1800K / 4500K)
Power consumption (W) INDIR 53.76 / 54.24 (1800K / 4500K)
Connection 5-core or 3-core
Control PWM dimming (0–100%)
Protection level IP20
Luminous efficacy (lm/W) DIR 58.16 / 93.89 (1800K / 4500K)
Luminous efficacy (lm/W) INDIR 50.98 / 82.25 (1800K / 4500K)
Luminous flux (lm) DIR 2993 lm / 4738 lm (1800K / 4500K)
Luminous flux (lm) INDIR 2537 lm / 4021 lm (1800K / 4500K)
Width (mm) 50
Type Ring light
Beam angle 105°
Configuration Pendant, ring-shaped
Height (mm) 60
Warranty 5 years
Lifetime (hrs) 50,000

With the MINALOX RING DUALWHITE 5060 D800 DIR/INDIR 24V, you receive a versatile, stylish, and high-quality lighting solution perfectly suited to the needs of modern interiors.

Show More
You May Also Like
Minalox LED ceiling light 400mm Loxone dimmable
Minalox LED ceiling light 400mm Loxone dimmable
Minalox LED ceiling light 400mm Loxone dimmable
€ 145,00

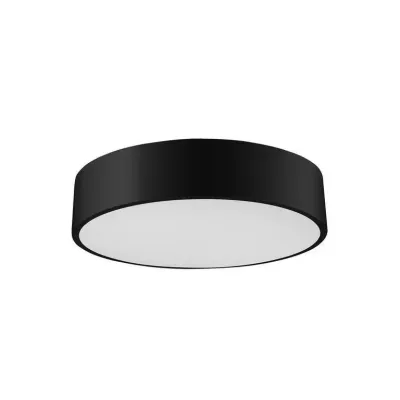

Minalox LED Ceiling Lamp 300mm Loxone Dimmable
