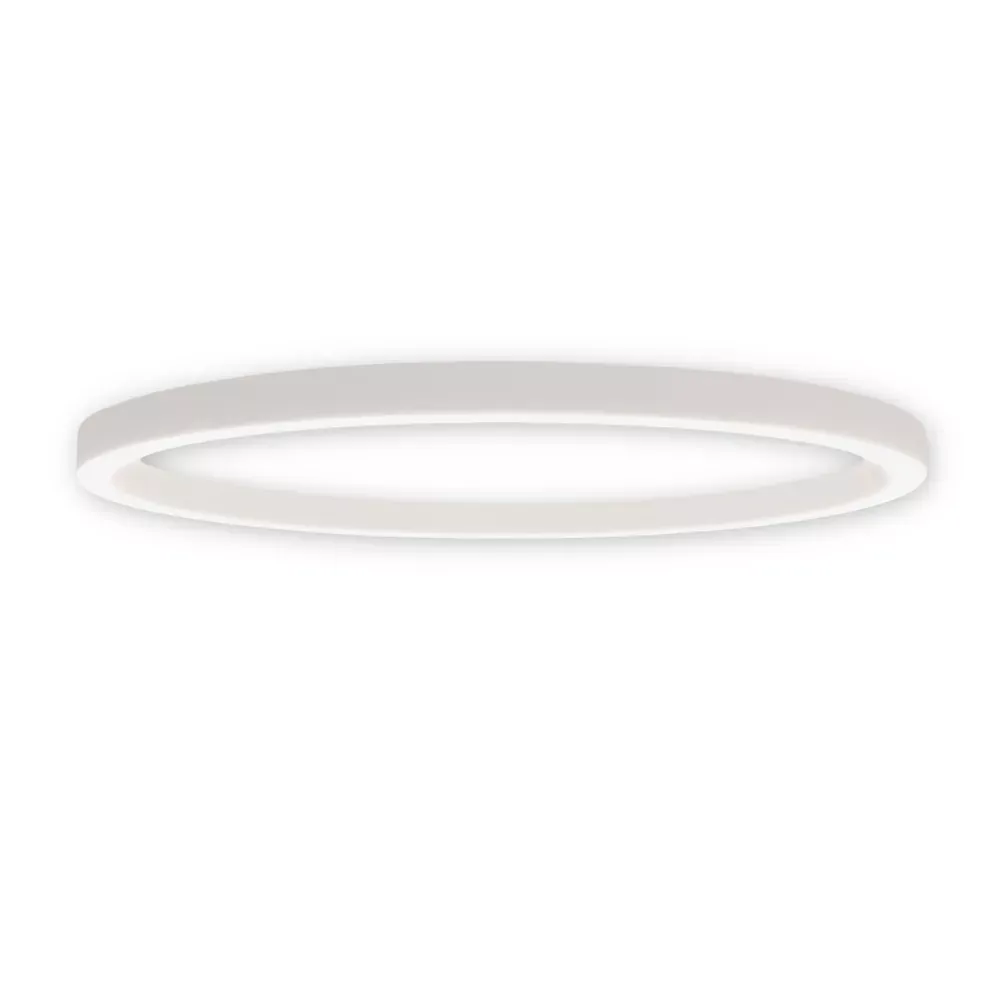

MINALOX RING DUALWHITE 5060 D1000 DIR/INDIR 24V 1800-4500K White

The MINALOX RING DUALWHITE 5060 D1000 DIR/INDIR 24V 1800–4500K White combines elegant design with powerful lighting, perfect for modern interiors. Discover below the key features and specifications of this advanced ring-shaped pendant lamp.

Key Features

• DUALWHITE Technology: Stepless adjustment of color temperature from 1800K to 4500K. Easily create the desired atmosphere, from warm evening light to fresh neutral white, ideal for work.
• Dimmability: Adjust the light intensity across a wide range from 0-100%, fully customizable for every situation.
• Direct (DIR) and Indirect (INDIR) Lighting: Provides uniform illumination without sharp contrasts. Both light sources can be controlled separately, offering maximum flexibility.
• High Color Rendering Index (CRI): Up to CRI 96.7 for natural and accurate color representation.
• Height-Adjustable Suspension: The ring structure (diameter 1000 mm) hangs on three adjustable cables. Longer cables are available on request, perfect for spaces with high ceilings.
• Premium Materials: Aluminum housing with powder coating (RAL 9003) and a matte PC diffuser for an elegant appearance and long durability.
• Precise PWM Dimming: Frequency range of 100 Hz - 20 kHz for smooth regulation without visible flicker. Compatible with smart systems such as LOXONE, TapHome, Ampio, and KNX.

Specifications

• Chromaticity (CCT): DIR 1722K/4252K, INDIR 1718K/4270K
• Connection Cable Length: 1900 mm
• Suspension Cable Length: 1900 mm (adjustable)
• Color: White (RAL 9003)
• Frequency Range: 100 Hz - 20 kHz
• Color Rendering Index (CRI):
  • DIR: 1722K CRI > 94 / 4252K CRI > 95.6
  • INDIR: 1718K CRI > 93.8 / 4270K CRI > 95.5
• Material: Aluminum + PC cover
• Mounting: 3-point suspension
• Power Supply Voltage: 24V DC
• Nominal Power: 242 W
• Luminaire Optics: Matte diffuser (PC)
• Operating Temperature: -20°C to 50°C
• Design: DUALWHITE
• Diameter: 1000 mm
• Power Consumption:
  • DIR: 62.84 W / 63.16 W (1800K/4500K)
  • INDIR: 62.23 W / 62.29 W (1800K/4500K)
• Connection: 5-core or 3-core
• Control: PWM dimming (0–100%)
• Protection Level: IP20
• Light Efficiency:
  • DIR: 47.63 lm/W / 75.02 lm/W (1800K/4500K)
  • INDIR: 40.78 lm/W / 64.56 lm/W (1800K/4500K)
• Luminous Flux (lm):
  • DIR: 3152 lm / 5126 lm (1800K/4500K)
  • INDIR: 2740 lm / 4461 lm (1800K/4500K)
• Width: 50 mm
• Lighting Angle: 105°
• Execution: Pendant, ring-shaped
• Height: 60 mm
• Warranty: 5 years
• Lifetime: 50,000 hours

With its smart technology, adjustable lighting, and high-quality finish, the MINALOX RING DUALWHITE 5060 is an excellent choice for stylish and functional lighting in any modern interior.
