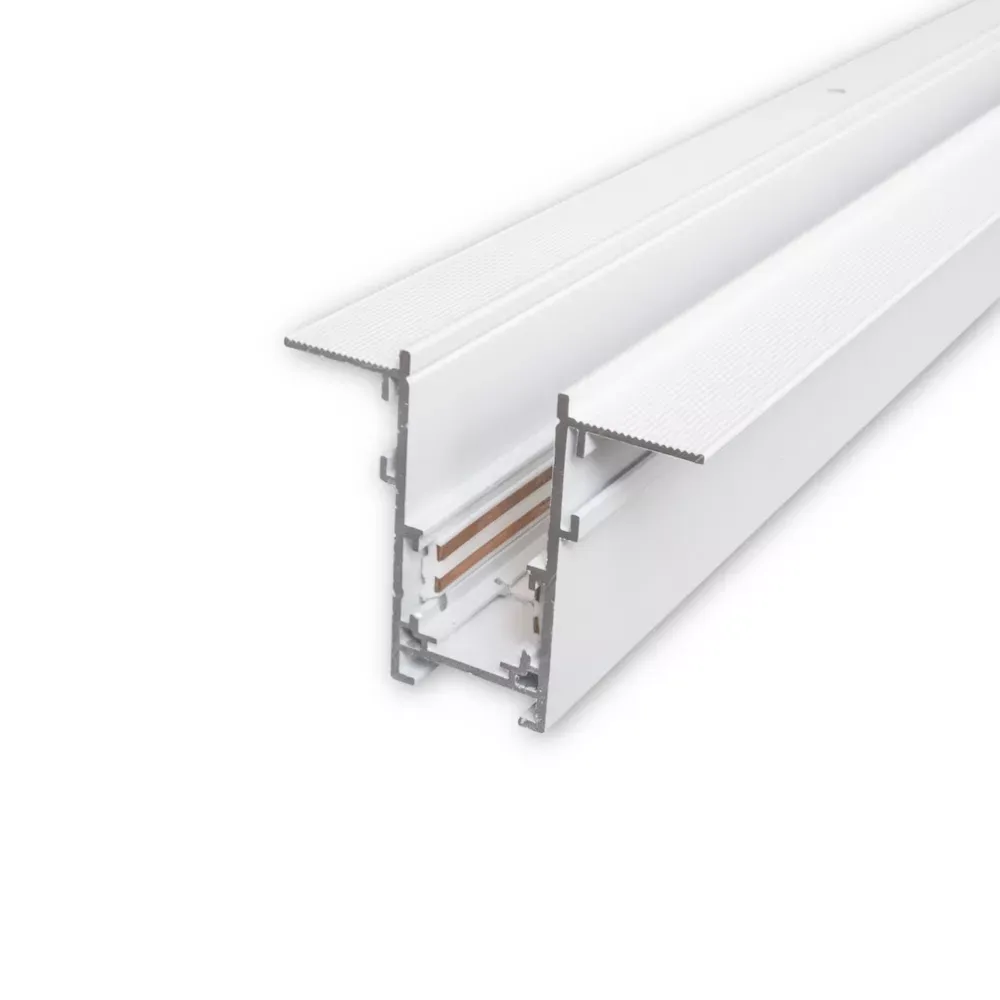

MINALOX RAIL SYSTEM RMT-series 1m White Loxone dimmable

The MINALOX MAGNETIC RAIL SYSTEM RMT410/WH is an elegant recessed strip in DUALWHITE design, specifically designed for installation in plasterboard constructions and other sheet materials.

Installation

The installation is simple:

• Place the strip in the cut-out hole.
• Secure it with suitable screws.
• Spread the entire surface with a spatula.

This ensures the strip seamlessly aligns with the surface of the wall or ceiling, resulting in a completely smooth architectural appearance. When using fixtures from the LINEAR TRACK LIGHT series, the fixtures align flush with the strip, creating an elegant and compact effect.

Durability and Flexibility

• The aluminum housing with durable surface finish guarantees long life and reliability.
• Thanks to the modular design, the strip can be shortened and adjusted to the needs of the space, offering maximum flexibility in lighting design.

Compatibility and Smart Home Integration

• The rail system is suitable for easy mounting of compatible MINALOX TRACKLIGHT fixtures without special tools.
• Supports DUALWHITE design and is compatible with modern intelligent control systems like LOXONE, TapHome, Ampio, KNX, and other systems with PWM control.
• This allows for easy integration into smart homes and professional spaces.

Comprehensive System

• A comprehensive system of connectors, connections, and accessories allows for the creation of various shapes, from simple lines to complex solutions.
• The strip can be divided into separate power sections, creating independent lighting circuits within one system.

Specifications

• Length (mm): 1000
• Recommended maximum length of the strips (mm): 3000 (single power point)
• Color: white
• Compatibility: LOXONE, TapHome, Ampio, KNX, other systems with PWM control
• Compatible lamps: MINALOX TRACKLIGHT series
• Material: Aluminum
• Maximum current/power (A/W): 10A/240W (at 24V DC)
• Mounting: Ceiling, wall (plasterboard or spatula)
• Power supply voltage: 24V DC
• Surface treatment: Powder coating, RAL 9003 (matte white)
• Design: DUALWHITE
• Connection: 3- or 4-wire, M112 connector
• Protection level: IP20
• Width (mm): 66
• Type: Tracklight strip
• Execution: Recessed, for board, for spatula
• Height (mm): 53.2
• Warranty: 5 years

With the MINALOX MAGNETIC RAIL SYSTEM, you bring a versatile, durable, and elegant lighting system into your home, suitable for both modern and professional applications.
