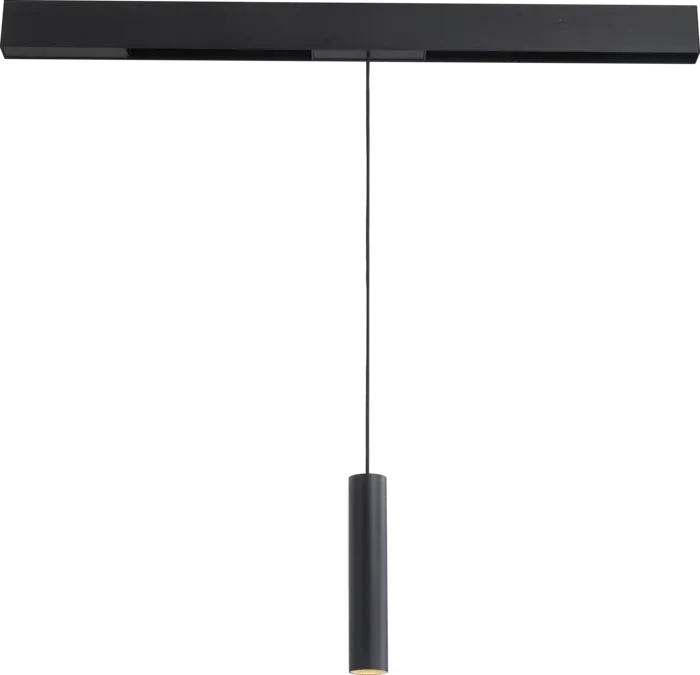

MINALOX RAIL SYSTEM pendant dia 60 length 300 white Loxone dimmable

The FC60 lighting is compatible with M, MT, EMT, and RMT series of the Minalox rail system. This dimmable pendant fixture features a beam angle of 24° and is equipped with DUALWHITE technology with a color temperature range of 1800-4500K. The fixture can be installed at any desired position on the rail.

Usage Options

• For use as DUALWHITE: You will need 2 channels from your RGBW dimmer.
• For use as SINGLECOLOR (3150K): Connect both connections to 1 RGBW dimmer channel (white and yellow).

The fixture is easily placed into the rail and secured with a locking mechanism.

Technical Specifications

• Model: MNLX-FC60
• Light Output: 301 lm / 543 lm / 836 lm
• Power: 6 W / 6 W / 12 W
• Power Supply Voltage: DC 24V
• Color Temperature: 1900K / 3090K / 4460K
• Dimmable: Yes
• Color Rendering Index (CRI): 95 / 96 / 95
• Material: Aluminum
• Dimensions: Ø60 x (300 / 600) mm
• Color: Black / White
• Beam Angle: 24º
