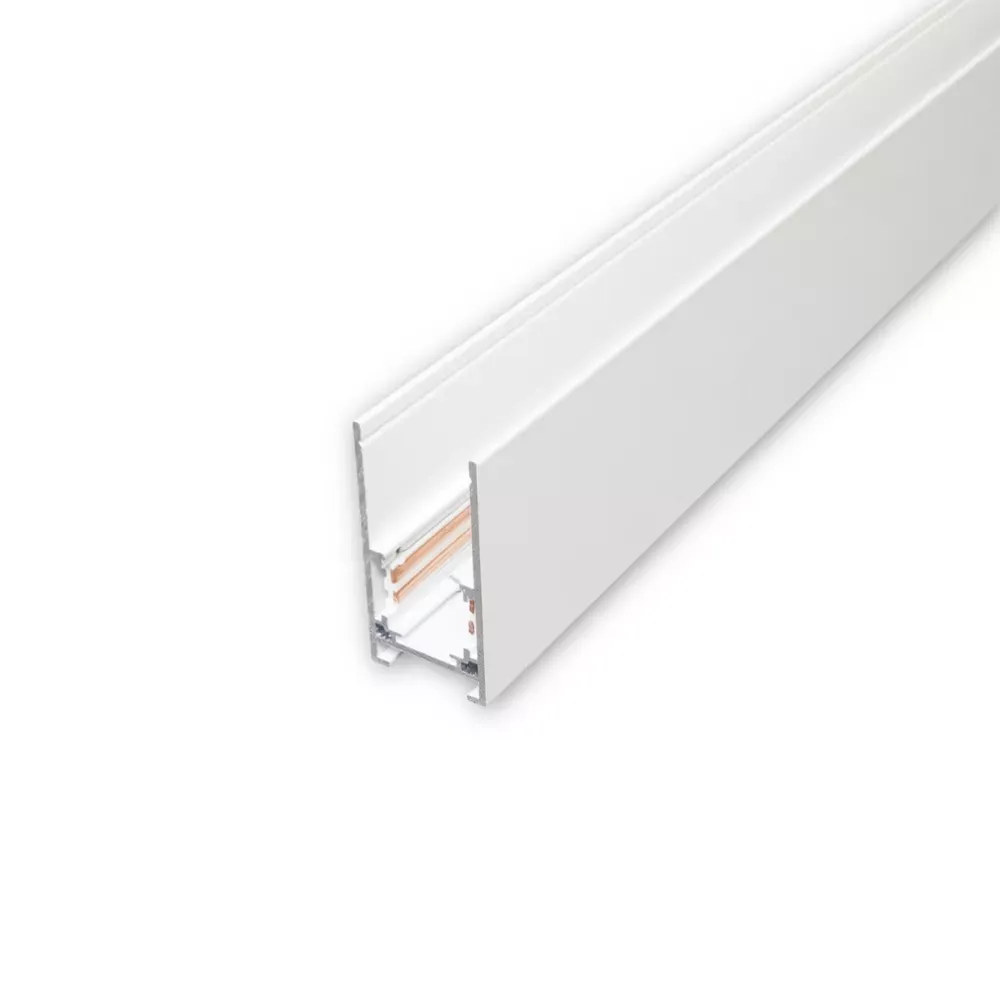

MINALOX RAIL SYSTEM M-series 1m White Loxone dimmable (higher profile)

The MINALOX MAGNETIC RAIL SYSTEM MT410/WH offers a robust and elegant solution as the foundation for the rail system in the DUALWHITE design. The system is suitable for both surface-mounted and pendant installation, and thanks to the greater height of 53.2 mm, it has an impressive appearance, ideal for spaces with higher ceilings.

Key features:

• Raised side walls: Conceal internal wiring and mounting elements for a sleek and unobtrusive look.
• Compatibility with LINEAR TRACK LIGHT fixtures: These fixtures integrate seamlessly with the rail, creating a compact, elegant appearance.
• Smart home integration: The 24V DC power supply and compatibility with systems such as LOXONE, TapHome, Ampio, KNX, and other PWM solutions allow for easy integration.

Durable and modular design:

The aluminum housing (dimensions 53.2 × 26.6 mm) offers:

• High durability and a long lifespan.
• A modern architectural element that gives the interior a contemporary character.
• Modular possibilities: Strips can be shortened and connected, offering maximum light variation and flexibility.

Easy installation:

The rail system enables quick and tool-free installation of compatible MINALOX TRACKLIGHT fixtures. It supports the DUALWHITE version and is ready for integration into various control systems.

Flexible configuration:

An extensive system of connectors, connections, and accessories allows you to:

• Create various shapes according to customer preferences, from simple lines to complex circuits.
• Divide separate power sections, enabling multiple independent light circuits within one shape. For example, in a rectangular setup, each arm can have its own control.

Specifications

• Length (mm): 1000
• Recommended maximum strip length (mm): 3000 (single power point)
• Color: White (RAL 9003, matte white)
• Material: Aluminum
• Maximum current/power: 10A/240W (at 24V DC)
• Power supply voltage: 24V DC
• Installation: Ceiling or wall
• Compatible lamps: MINALOX TRACKLIGHT series
• Compatibility: LOXONE, TapHome, Ampio, KNX, other PWM-controlled systems
• Modularity: Shortening and joining possible
• Design: DUALWHITE
• Connection: 3- or 4-wire, M112 connector
• Protection level: IP20
• Width (mm): 26.6
• Height (mm): 53.2
• Surface treatment: Powder coating
• Type: Tracklight strip
• Execution: Surface, pendant
• Warranty: 5 years

With the MINALOX MAGNETIC RAIL SYSTEM MT410/WH, you choose a durable, flexible, and elegant lighting system that perfectly matches modern interior designs and advanced technologies.
