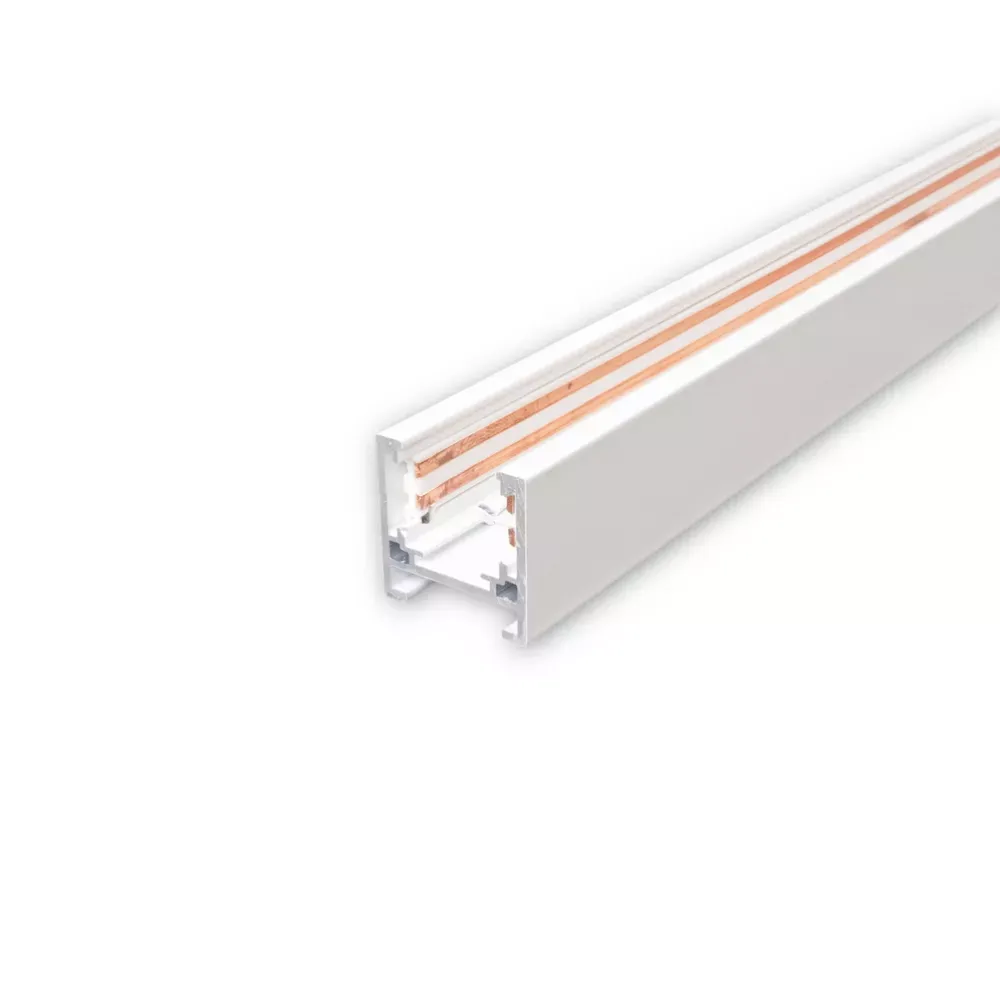

MINALOX RAIL SYSTEM M-series 1.5m White Loxone dimmable

The MINALOX MAGNETIC RAIL SYSTEM M415/WH forms the basis for rail lighting in the DUALWHITE design. All lights from the MINALOX TRACKLIGHT series can be used in the rail.

Features and Benefits

• Mounting options: Designed for surface and pendant mounting (when using M195 or M191).
• Finish: Matte white powder coating for an elegant and modern appearance.
• Flexibility: Suitable for interiors requiring sleek lighting design and flexibility.
• Smart Home compatibility: Easy integration into smart systems like LOXONE, TapHome, Ampio, KNX, and other PWM solutions thanks to the 24V DC power supply.

The aluminum housing has compact dimensions of 26.6 × 26.6 mm, providing:

• Durability: High lifespan and robustness.
• Unobtrusive design: Does not disrupt the overall architectural concept.

Modular Design

Thanks to the modular design, the strips:

• Can be shortened and connected: For maximum light variation depending on spatial needs.
• Divided into separate power sections: Allows creation of multiple independent lighting circuits within one shape. For example, in a rectangular setup, each arm can have its own control.

Easy Installation

• Compatibility: Suitable for MINALOX TRACKLIGHT fixtures.
• Tool-free: Quick installation without special tools.
• Connectors and accessories: Extensive system for creating various shapes, from simple lines to complex circuits.

Specifications

• Length: 1500 mm.
• Recommended maximum strip length: 3000 mm (with a single power point).
• Color: White (RAL 9003, matte).
• Material: Aluminum.
• Maximum current/power: 10A/240W (at 24V DC).
• Mounting: Ceiling or wall.
• Design: DUALWHITE.
• Connection: 3- or 4-wire, M112 connector.
• Coverage level: IP20.
• Width and height: 26.6 mm.
• Warranty: 5 years.

With the MINALOX MAGNETIC RAIL SYSTEM M415/WH, you choose a sustainable, flexible, and smart solution that perfectly complements modern interior concepts.
