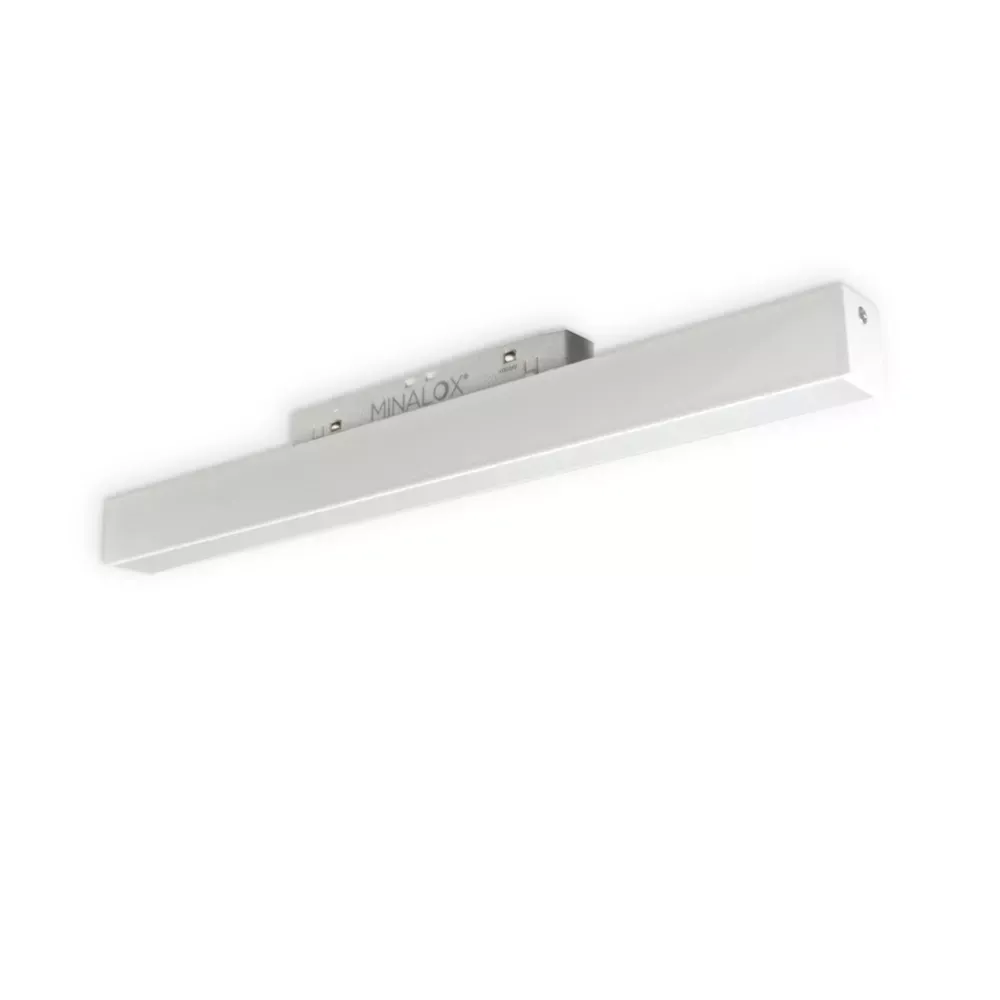

MINALOX RAIL SYSTEM LED 503-600 DualWhite 12W 24V 120° 1800-4500K White Loxone dimmable

The linear lighting 503 is compatible with the M, MT, EMT, and RMT series of the Minalox rail system. When using high-profile rails from these series, the fixture is level with the rail after installation.

This dimmable linear fixture has a beam angle of 120° and features DUALWHITE with a color temperature setting of 1800-4500K.

Use as DUALWHITE or SINGLECOLOR

• For use as DUALWHITE, you need 2 channels from your RGBW dimmer.
• For use as SINGLECOLOR (3150K), connect both connections to 1 RGBW dimmer channel (white and yellow).

The fixture is placed in the rail and locked into position with a safety system.

Specifications

• Chromaticity (CCT): 1775K / 4499K / 2947K
• Color: White
• Color rendering index CRI (Ra): 96 / 96 / 93
• Material: Aluminum
• Model: MNLX-503-600/WH
• Power supply voltage: 24V DC
• Design: DUALWHITE
• Power consumption (W): 16.8W / 17.75W / 35.07W
• Dimensions: 46 x 23 x 600 mm
• Luminous flux (lm): 635 lm / 1120 lm / 1698 lm
• Beam angle: 120°
• Performance: Yes
• Weight: 0.41 kg
