MINALOX RAIL SYSTEM EMT series black 2m Loxone dimmable

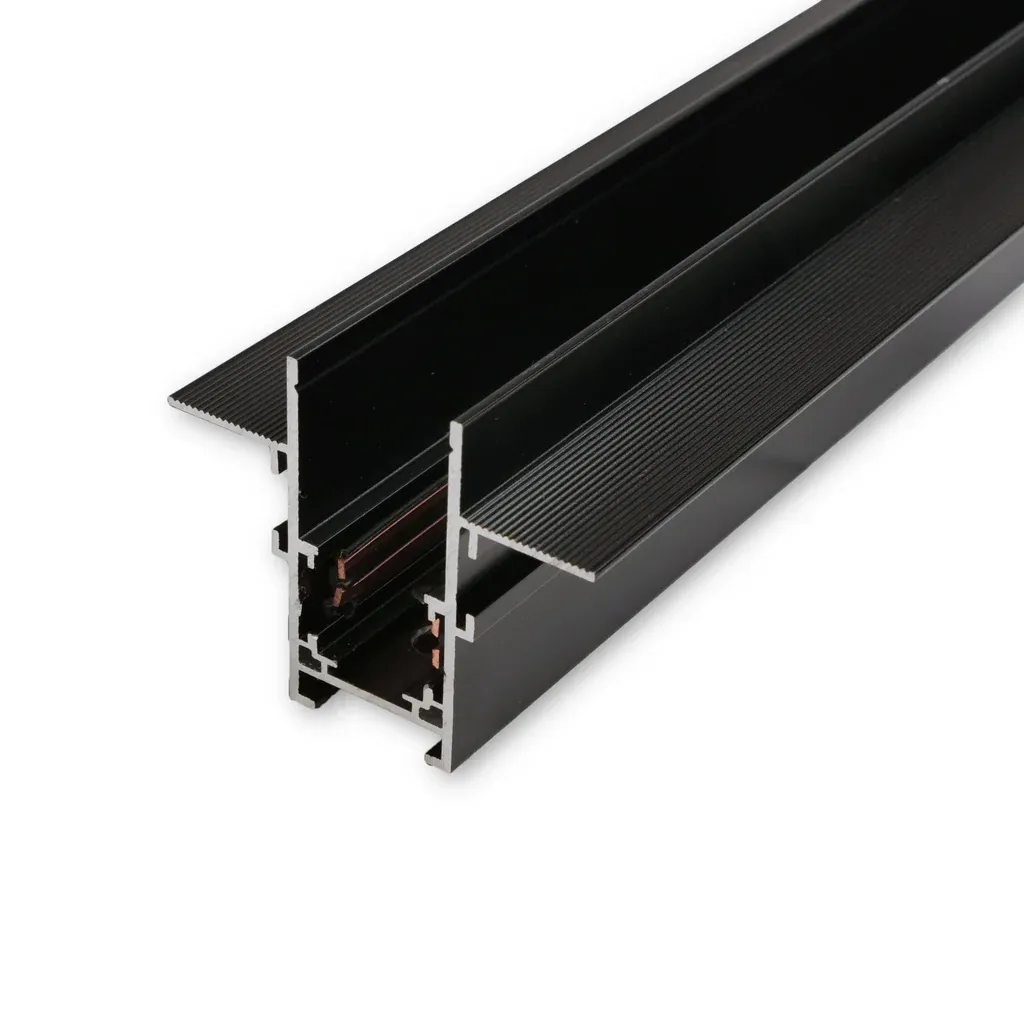

The magnetic rail is the foundation of the 24V DC lighting rail system.

Installation and Assembly

• The installation can be recessed.
• The rail is mounted on a drywall structure and then covered with drywall or other panels.
• Rails can be connected with couplings to create various types of installations.

Note: For proper operation, the system must be connected with a power connector, which is not included in the set.

Functionality

• The rail can be divided into multiple separate lighting circuits, each of which can be controlled individually.

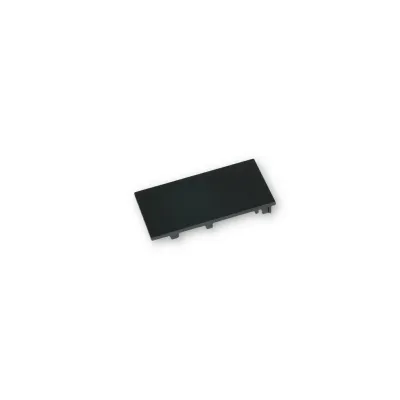

• The set includes two end caps in the color of the rail, which serve as protection during transport.

Technical Specifications

• Model: MNLX-EMT420
• Rail length: 2000 mm
• Rail color: White / Black
• Suitable power supply voltage: DC 24V
• Type of connection: 4-wire connector
• Material: Aluminum
• Dimensions: 66 x 53.20 x 2000 mm
