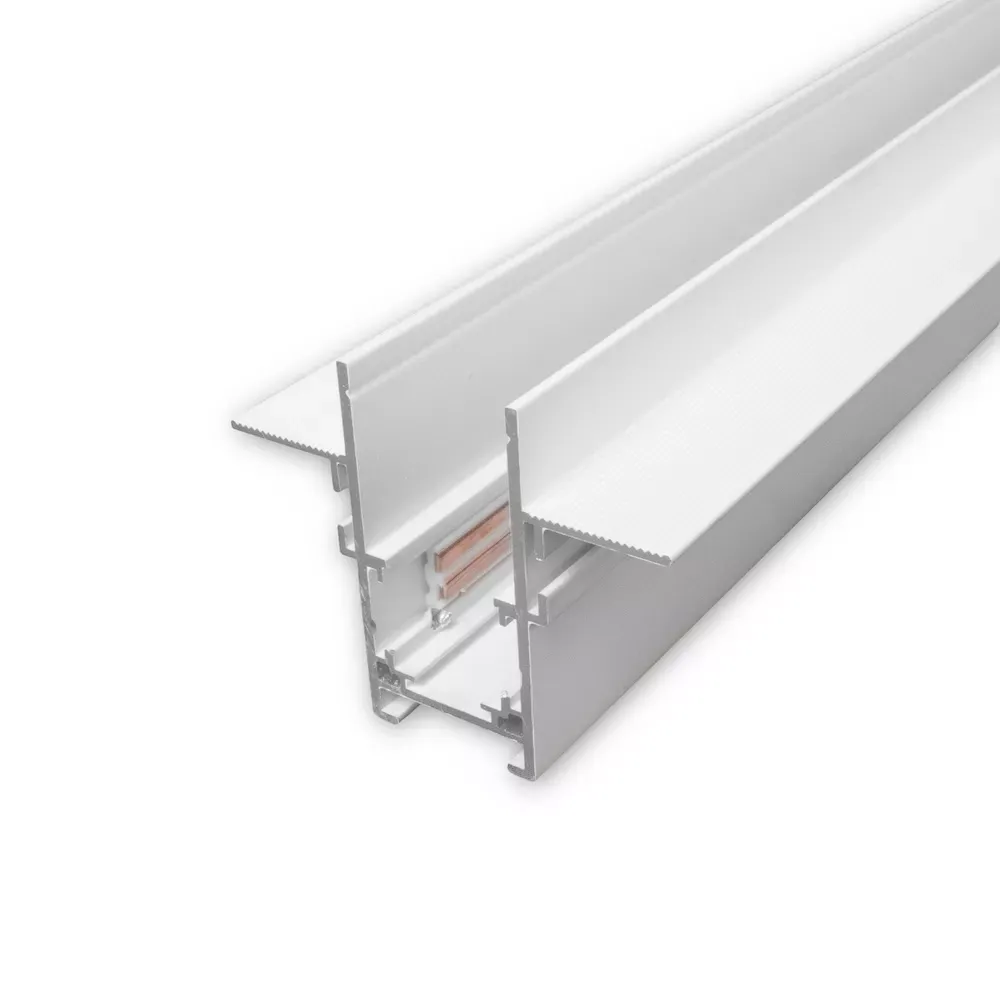

MINALOX MAGNETIC TRACK SYSTEM EMT430/WH is an elegant recessed rail in DUALWHITE design, designed for installation in plasterboard constructions, other panel materials, or directly in plaster. Thanks to its recessed design, the rail appears unobtrusive and minimalist, perfectly blending with the interior and supporting a sleek architectural look. When using fixtures from the LINEAR TRACK LIGHT series, the fixtures align flush with the rail, creating an elegant, compact effect.
| Property | Detail |
|---|---|
| Length (mm) | 3000 |
| Recommended Maximum Length (mm) | 3000 (single power point) |
| Color | White |
| Compatibility | LOXONE, TapHome, Ampio, KNX, other systems with PWM control |
| Compatible Lamps | MINALOX TRACKLIGHT series |
| Material | Aluminum |
| Maximum Current/Power (A/W) | 10A/240W (at 24V DC) |
| Mounting | Ceiling, wall (SDK or plaster) |
| Power Supply Voltage | 24V DC |
| Surface Treatment | Powder coating, RAL 9003 (matte white) |
| Design | DUALWHITE |
| Connection | 3- or 4-wire, M112 connector |
| Protection Level | IP20 |
| Width (mm) | 66 |
| Type | Tracklight strip |
| Execution | Recessed, under countertop, for plaster |
| Height (mm) | 53.2 |
| Warranty | 5 years |
This versatile system allows you to easily create a minimalist and modern lighting design that perfectly matches your interior or professional space.
