MINALOX RAILSPOT 15-55° adjustable FC0848 DualWhite 12W 24V White Loxone dimmable

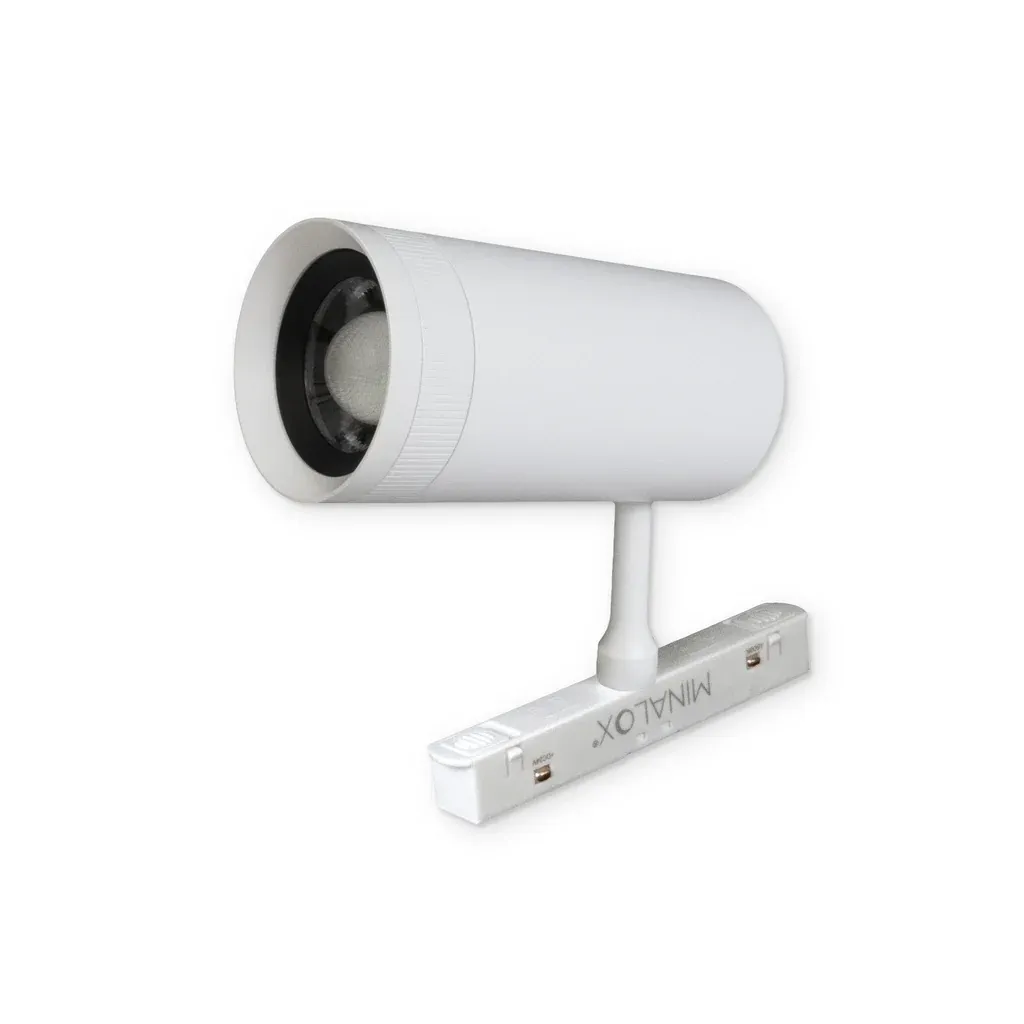

This rail spot is a dimmable spotlight fixture compatible with the M, MT, EMT, and RMT series of the Minalox rail system. The fixture has an adjustable beam angle and is designed in DUALWHITE with a color temperature setting of 1800-4500K. The lamp can be rotated to adjust the light direction.

Usage options:

• For use as DUALWHITE:
  • Requires 2 channels of your RGBW dimmer.
• For use as SINGLECOLOR (3150K):
  • Connect both terminals to 1 RGBW dimmer channel (white and yellow).

The fixture is placed in the rail and locked with a security system.

Specifications

• Chromaticity (CCT): 1800/4500K
• Color: white
• Color rendering index CRI (Ra): 91.7/96
• Material: Aluminum
• Model: MNLX-FC0848/WH
• Power supply voltage: 24V DC
• Design: DUALWHITE
• Power consumption (W): 6W/6W
• Dimension: Diameter 55*114mm
• Luminous flux (lm): 305lm/460lm
• Lighting angle: 10-55°
• Performance: Yes
• Weight: 0.36 kg
