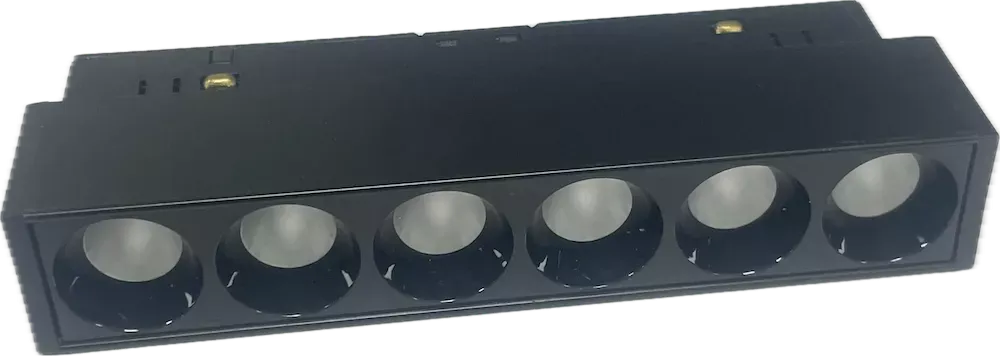

MINALOX RAILDOTS 24° FC6G DualWhite 6W 24V 1800-4500K Black Loxone dimmable

Specifications

Chromaticity (CCT)

• 1969K / 4841K / 3173K

Dimensions

• Length: 125 mm
• Width: 23 mm
• Height: 46 mm

Color

• Black
  (View more via Minalox)

Frequency Range

• 100Hz - 20kHz

Color Rendering Index CRI (Ra)

• 92.1 / 92.3 / 95.1

Compatibility

Suitable for:

• LOXONE
• TapHome
• Ampio
• KNX
• Other systems with PWM control

Material

• Aluminum

Power Supply Voltage

• 24V DC

Luminaire Optics

• Reflector

Surface Treatment

• Powder coating, RAL 9005 (fine structure, black)

Operating Temperature

• -20°C to 50°C

Power Consumption (W)

• 6.17 / 6.38 / 6.16

Connection

• To the bar

Control

• PWM dimming (0–100%)

Coverage Level

• IP42

Light Efficiency (lm/W)

• 62.33 / 98.96 / 103.43

Luminous Flux (lm)

• 384 / 631 / 637

Type

• Tracklight linear spot

Lighting Angle

• 24°

Execution

• Rail tilting

Warranty

• 5 years

Lifetime

• 50,000 hours
