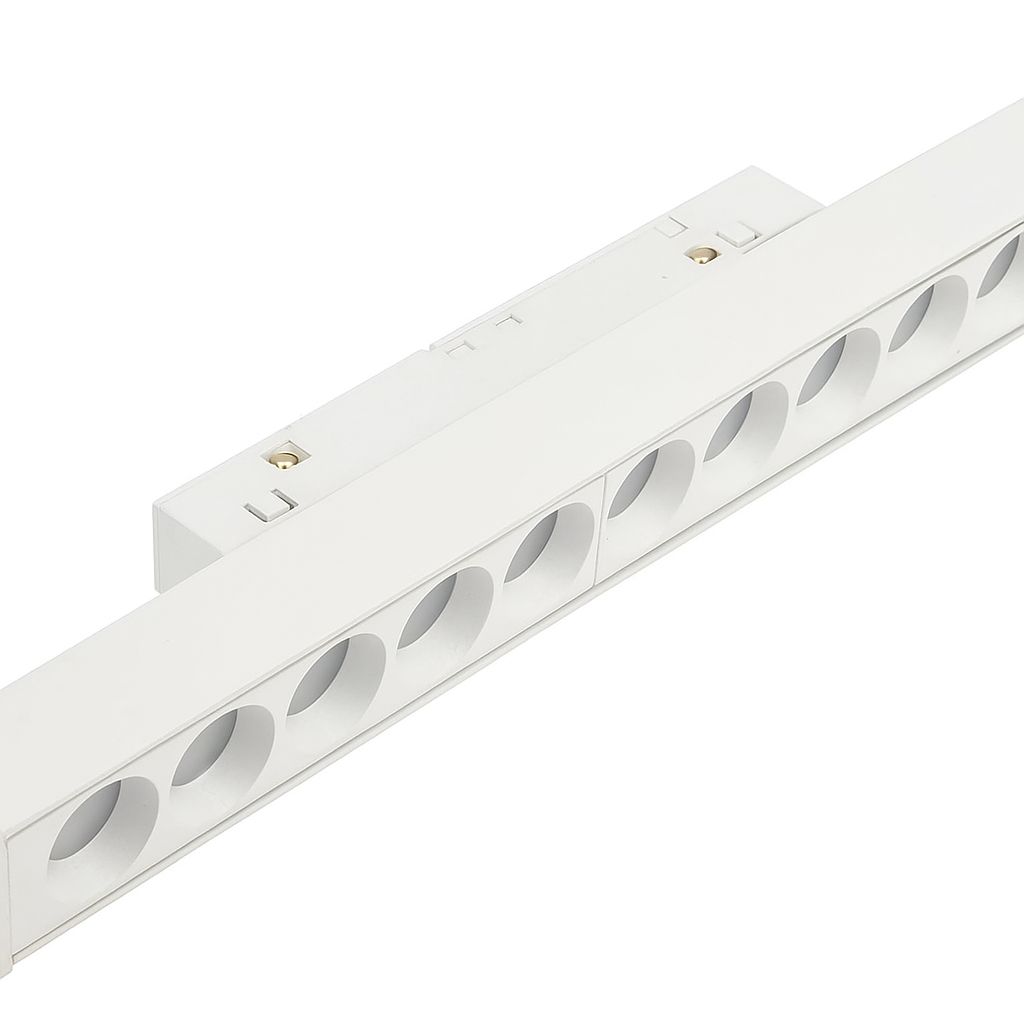

MINALOX RAILDOTS 24° FC12G DualWhite 12WB 24V 1800-4500K White Loxone dimmable

Specifications

Chromaticity (CCT)

• 1997K / 4701K / 3106K

Dimensions

• Length: 245 mm
• Width: 23 mm
• Height: 46 mm

Color

• White

Frequency range

• 100Hz - 20kHz

Color rendering index CRI (Ra)

• 92.1 / 92.4 / 95

Compatibility

• LOXONE, TapHome, Ampio, KNX, and other systems with PWM control

Material

• Aluminium

Power supply voltage

• 24V DC

Luminaire optics

• Reflector

Surface treatment

• Powder coating, RAL 9005 (fine structure, black)

Operating temperature

• -20°C to 50°C

Power consumption (W)

• 12.26 / 12.17 / 12.12

Connection

• To the bar

Control

• PWM dimming (0–100%)

Coverage level

• IP42

Luminous efficacy (lm/W)

• 64.21 / 98.27 / 100.51

Luminous flux (lm)

• 787 / 1195 / 1218

Type

• Tracklight linear spotlight

Lighting angle

• 24°

Execution

• Slat tilting

Warranty

• 5 years

Lifetime

• 50000 hours
