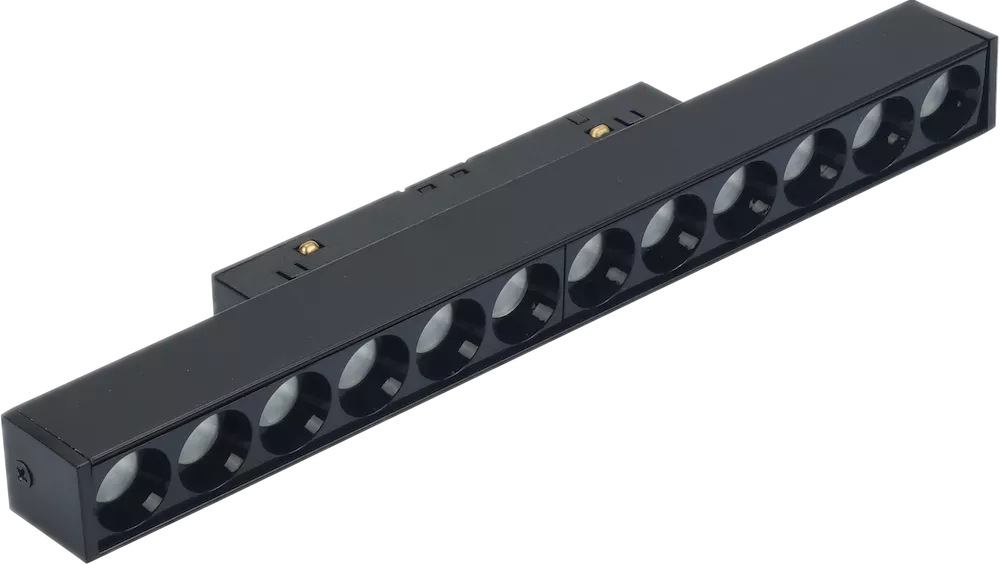

MINALOX RAILDOTS 24° FC12G DualWhite 12W 24V 1800-4500K Black Loxone dimmable

Specifications

• Chromaticity (CCT): 1997K / 4701K / 3106K
• Length (mm): 245
• Color: Black
• Frequency range: 100Hz - 20kHz
• Color rendering index CRI (Ra): 92.1 / 92.4 / 95
• Compatibility: LOXONE, TapHome, Ampio, KNX, other systems with PWM control
• Material: Aluminum
• Supply voltage: 24V DC
• Luminaire optics: Reflector
• Surface treatment: Powder coating, RAL 9005 (fine structure, black)
• Operating temperature: -20°C - 50°C
• Power consumption (W): 12.26 / 12.17 / 12.12
• Connection: To the bar
• Control: PWM dimming (0–100%)
• Protection level: IP42
• Luminous efficacy (lm/W): 64.21 / 98.27 / 100.51
• Luminous flux (lm): 787 / 1195 / 1218
• Width (mm): 23
• Type: Tracklight linear spotlight
• Lighting angle: 24°
• Design: Bar tilting
• Height (mm): 46
• Warranty: 5 years
• Lifespan (h): 50,000
