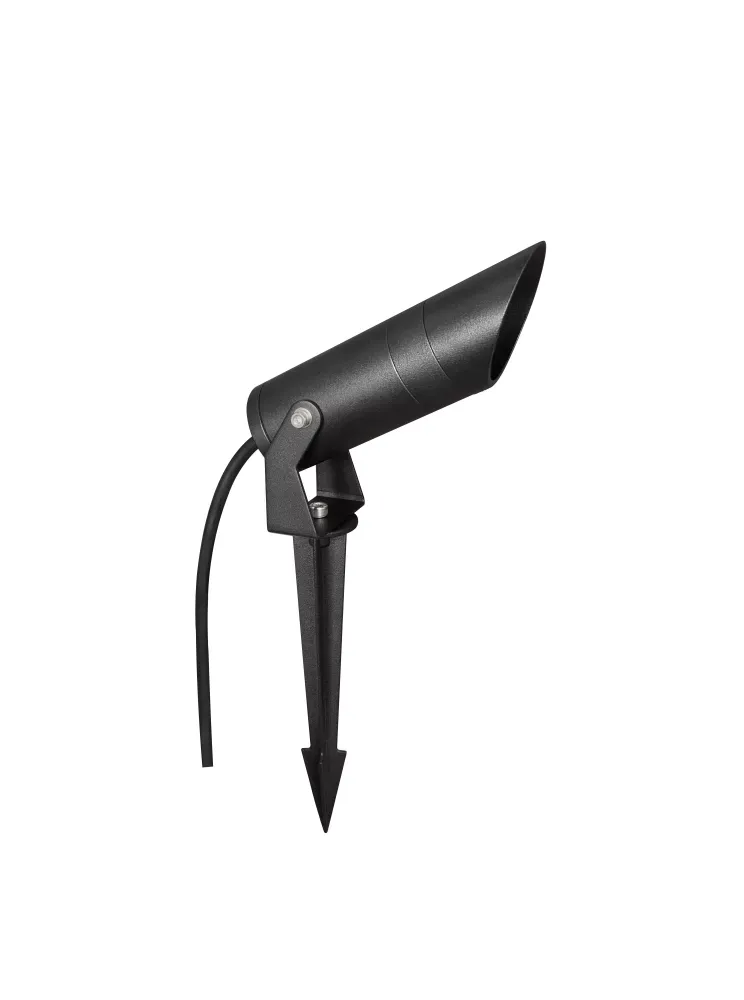

MINALOX LED Spike Ground 60 D43 DualWhite 12W 24V 1800-4500K

Specifications

• Chromaticity (CCT): 1757K / 4689K / 3084K
• Color: Black
• Frequency range: 100Hz - 20kHz
• Lamp depth: 60 mm
• Color rendering index CRI (Ra): 93 / 95.5 / 93.9
• Compatibility: LOXONE, TapHome, Ampio, KNX, other systems with PWM control
• Material: Aluminum + PMMA lens
• Supply voltage: 24V DC
• Luminaire optics: Lens
• Surface treatment: Powder coating, RAL 9005 (fine structure, black)
• Operating temperature: -20°C to 50°C
• Design: DUALWHITE
• Power consumption (W): 8.38 / 8.16 / 17.41
• Connection: 3-core
• Control: PWM dimming (0–100%)
• Protection level: IP67
• Luminous efficacy (lm/W): 25.8 / 48 / 35.6
• Luminous flux (lm): 216 / 392 / 620
• Width: 43 mm
• Type: LED spotlight
• Lighting angle: 40°
• Execution: Recessed, exterior
• Height: 255 mm
• Warranty: 5 years
• Lifetime: 50,000 hours
• Weight: 0.41 kg
