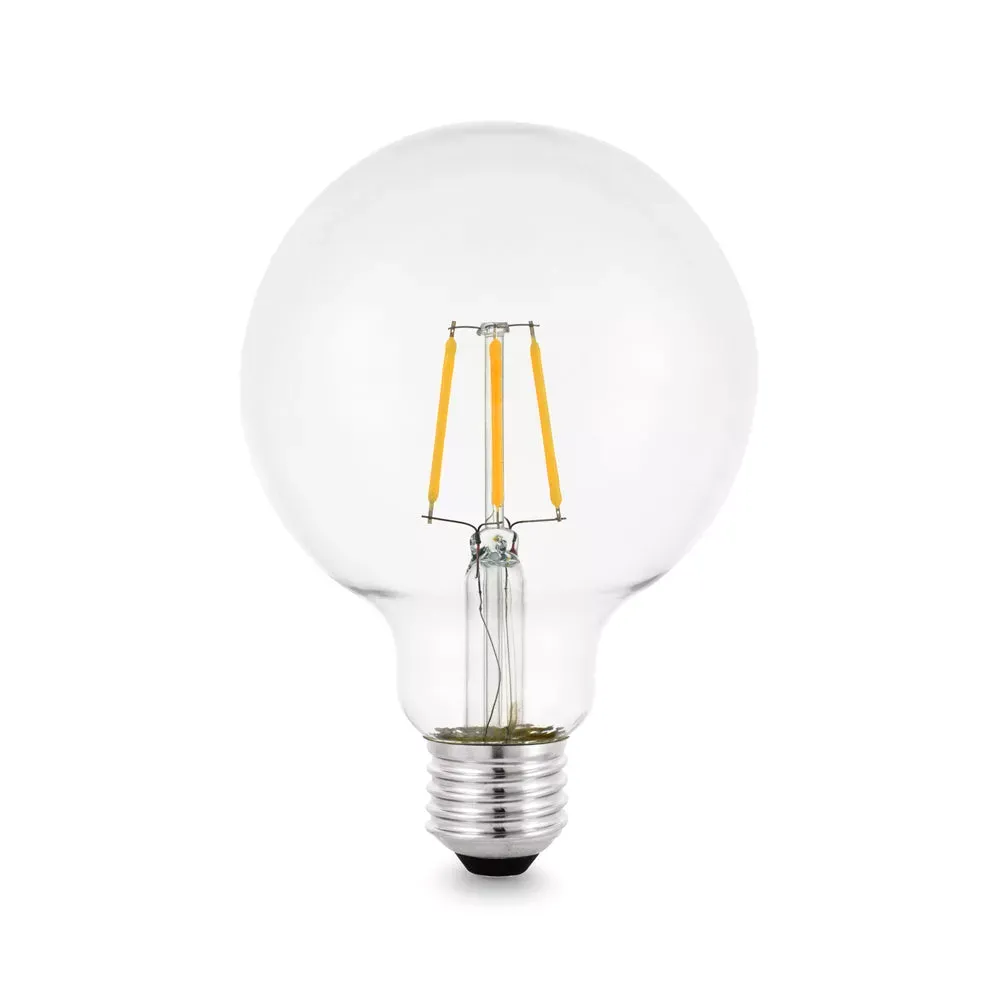

MINALOX LED Filament Lamp G95 E27/6W/24V/WW Loxone Dimmable

Specifications

General Characteristics

• Type: LED lamp
• Socket Type: E27
• Model: G95
• Design: Monochrome
• Material: Nickel-plated brass + glass
• Fixture Optics: Clear glass

Technical Specifications

• Power Supply Voltage: 24V DC
• Power Consumption: 6W
• Control: PWM dimming (0–100%)
• Frequency Range: 100Hz - 20kHz
• Chromaticity (CCT): 2755K
• Color Rendering Index CRI (Ra): 93.4

Light Performance

• Luminous Efficacy: 121.3 lm/W
• Luminous Flux: 745 lm
• Lighting Angle: 360°

Physical Properties

• Diameter: 95 mm
• Height: 136 mm
• Weight: 0.115 kg

Operational Properties

• Operating Temperature: -20°C to 50°C
• Lifetime: 30,000 hours
• Warranty: 5 years

Compatibility

Suitable for systems such as:

• LOXONE
• TapHome
• Ampio
• KNX
• Other systems with PWM control
