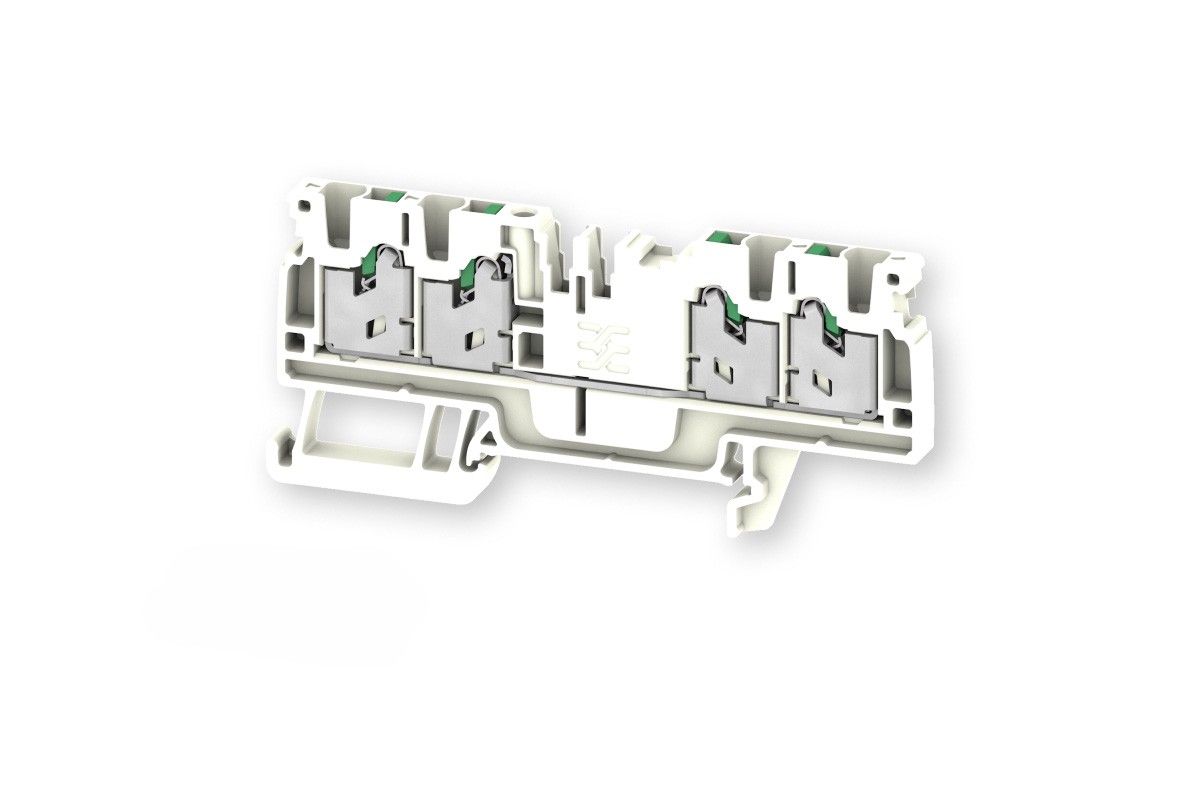

Loxone Weidmüller Terminal Blocks S4C 2.5 white per piece

The S4C 2.5 4-pole terminal blocks are designed for space-saving wiring of Loxone projects.

Main Features:

• Compact design:
  The new terminal blocks fit perfectly into any control cabinet. The 4-pole terminal blocks are ideal for room-specific wiring of Loxone projects.
• Scalable:

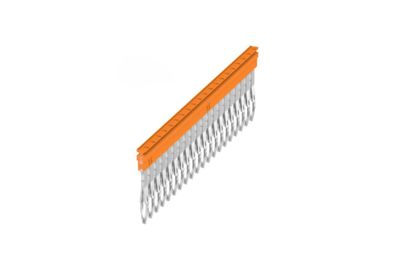

  Need more connections? This can be easily achieved with cross-connectors.
• Easy installation:
  The innovative SNAP-IN technology enables quick, secure wiring without tools.
• Organized:
  Thanks to Loxone's familiar color scheme, it's immediately clear where 24V (orange), Tree (green), and GND (white) are located.

Technical Specifications:

• Type: S4C 2.5 GN
• Conductor cross-section:
  • Solid/fine-stranded conductors: 0.5...2.5 mm²
  • Smaller cross-sections are possible when using ferrules.
