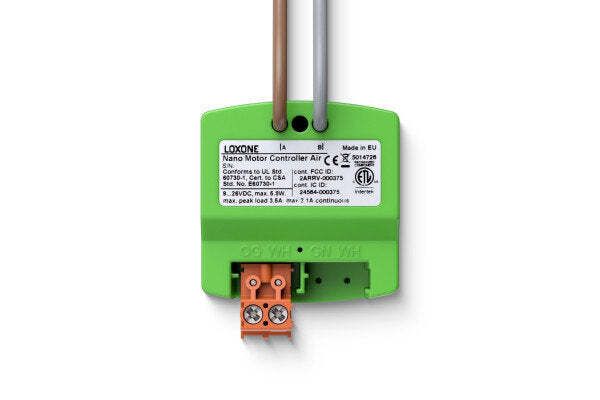

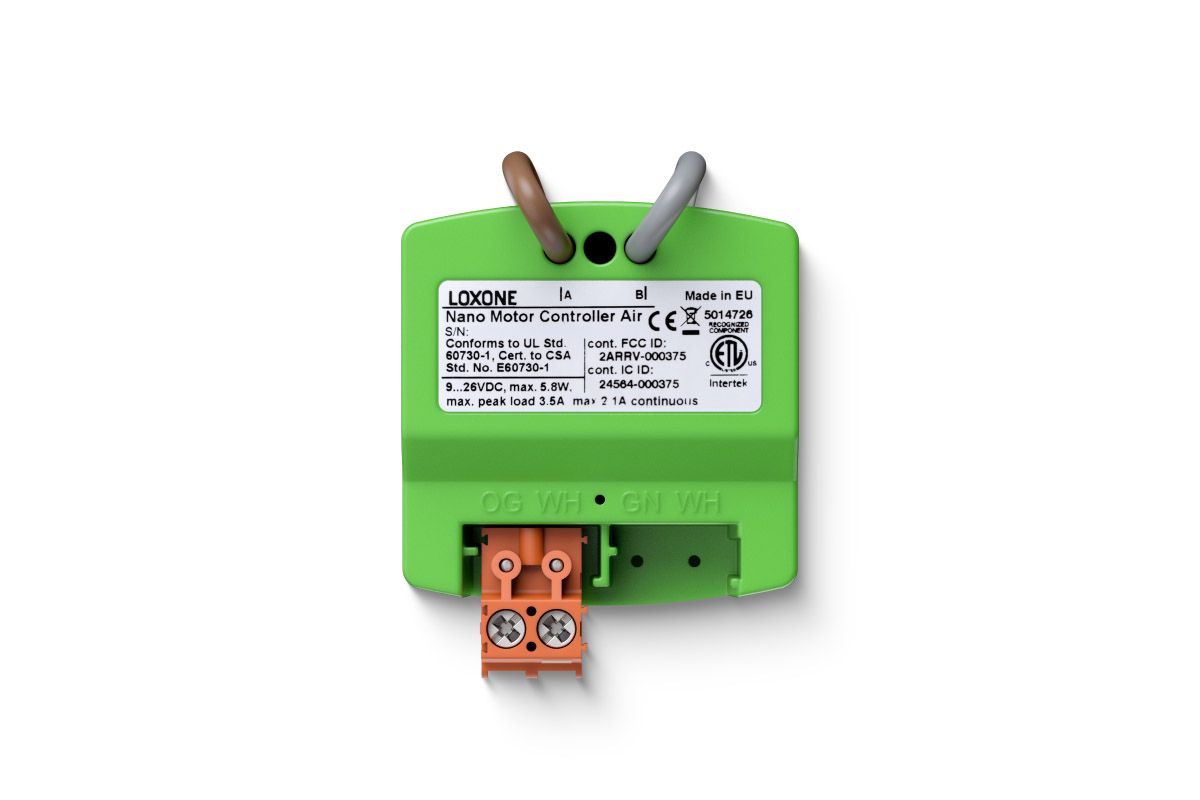

Loxone Nano Motor Controller Air

The Nano Motor Controller Air is a compact built-in module with DC outputs, controlled via Loxone Air technology. The configurable outputs can be used to control the speed of DC motors or dim LED lights. You can use the Nano Motor Controller Tree in three different operating modes: Bidirectional motor, Unidirectional motor, and PWM dimming. Additionally, the module features current flow detection and overcurrent detection, which can be used for automatic end position detection.

Key Features:

• 3 operating modes:
  • Bidirectional motor (1 output, polarity reversal)
  • Unidirectional motor (2 outputs)
  • PWM Dimmer (1 output)
• Maximum total load of outputs:
  • Bi- & unidirectional: 2.1A continuous; 3.5A peak (<30s)
  • Dimmer: 2.1A
• Speed control for bi- & unidirectional modes
• Operating voltage: between 9...26VDC
• PWM Frequency:
  • PWM Dimmer: 400Hz
• Current flow detection: 100 ... 3500mA
• Overcurrent detection: 100 ... 3500mA
• Ultra-compact design: 40x39x20.5mm
• Integrated 150mm long connection cable
• Quick commissioning thanks to Loxone Air technology
