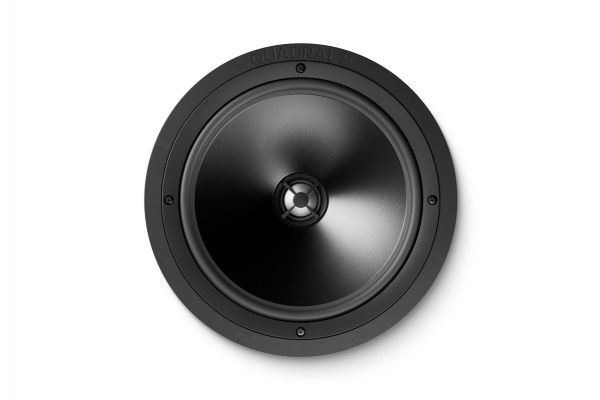

Loxone Install Speaker 10 Client

The Install Speaker 10 Client impresses with its excellent audio properties and numerous usage possibilities. It receives its audio signal from a Master Speaker and can pass it on to other Client Speakers. This makes it a flexible audio solution that is scalable for any building size.

Key features:

• Single frame construction: Very compact design with minimal acoustically disruptive edges and maximum membrane surface.
• Coaxial system: Ensures extremely even and wide radiation behavior.
• Daisy Chain capability: Up to 20 Client Speakers via Daisy Chain per Master.
• Easy installation: Up to 80% less wiring effort.
• Distance between Client Speakers: 30 meters.

Technical specifications:

• Suitable for indoor and protected outdoor spaces.
• Type: 2-way (high and low tones).
• quadral ALTIMA® membrane.
• Even and wide radiation behavior of 120°.
• Installation depth: 108 mm.
• Installation diameter: 10.2” or 258 mm.
• Maximum panel thickness: 36 mm.

Datasheet
Commissioning Install Speaker 10 Client
