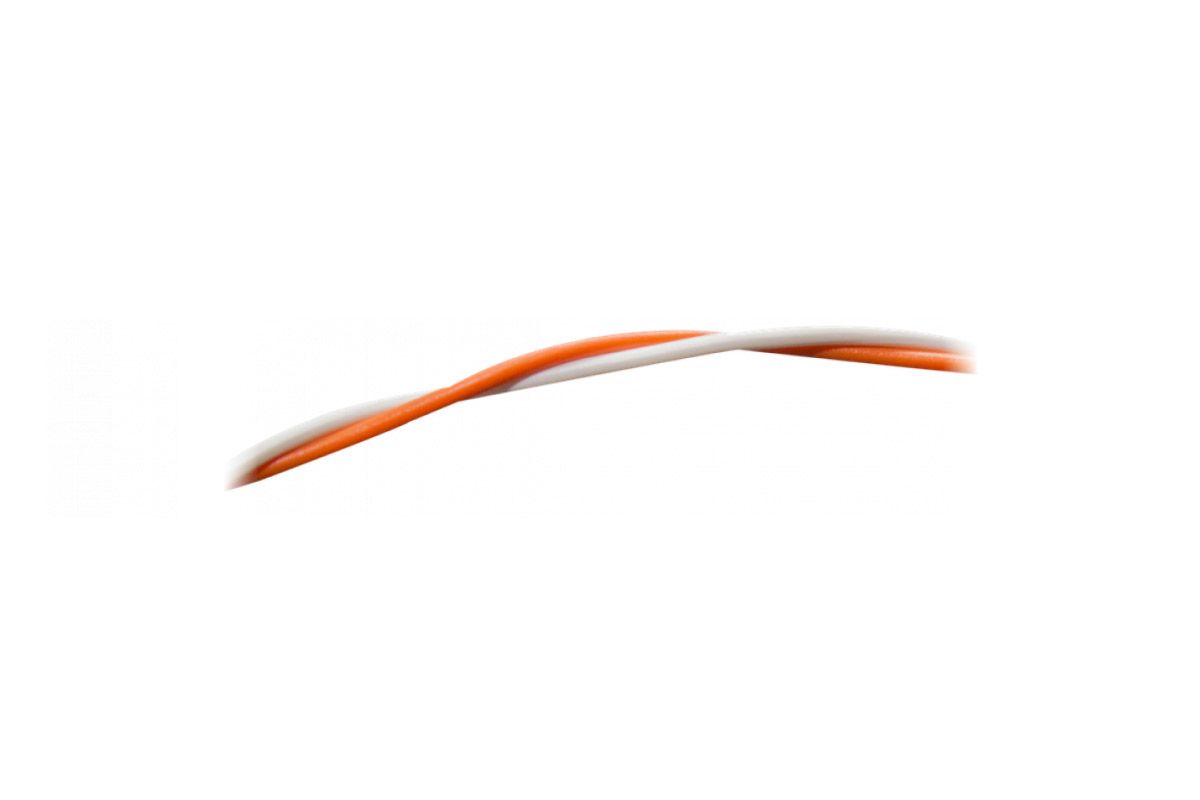

Loxone Door Connection Wire Orange/White per 100m

Connection wire for the distribution box

Features:

• Easily connect components together.
• Colors matched to different Loxone products.
• Pre-braided design.
• No ferrules required.
• Length: 100 meters.
• Thickness: 2 x 0.6 mm.

Overview

These connection wires are specifically designed for the distribution boxes of Loxone Smart Homes. Thanks to the braided single-wire design, no ferrules are required, which saves significant time. The colors are adjusted for various applications to prevent wiring errors.

Recommended color usage:

• Blue-white: for Loxone Link.
• Green-white: for Loxone Tree.
• Orange-white: for the 24V power supply.

Since the clamps and wires are the same color, connection errors are avoided.

Technical details

• Thickness: 2 x 0.6 mm.
• Class: Cl.1.
• Nominal voltage: up to 25V.
• Number of cores: 2.
• Insulation: PVC.
• Copper weight: 0.56 kg / 100 m.
• Permitted processing outdoor temperature in motion: -5...50°C.
• Permitted processing outdoor temperature fixed connection: -40...70°C.
• Usable as outdoor cable: no.

For more information, you can consult the Product Datasheet.

What's in the box?

• 100 m Connection Wire (2 x 0.6 mm).
