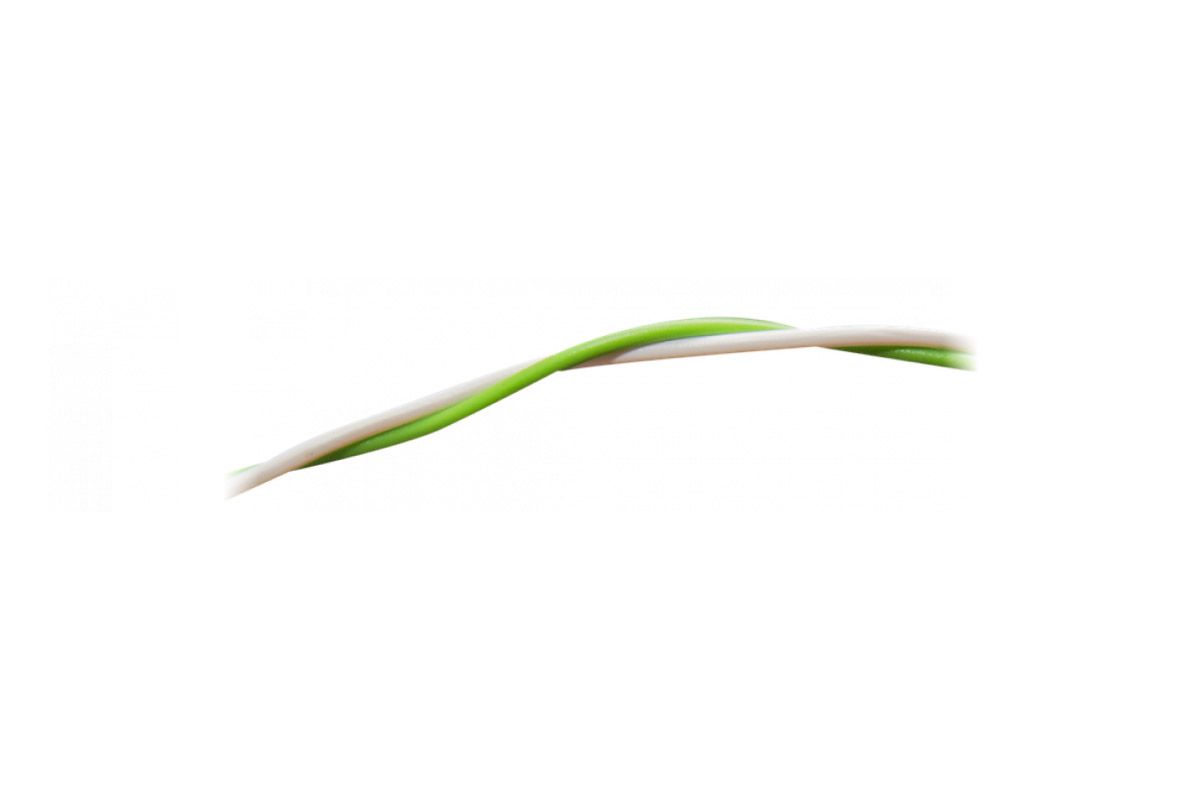

Loxone Door Connection Wire Green/White per 100m

Connection wire for the distribution box

• Easy component connection: Ideal for easily connecting components in your Loxone distribution box.
• Colors matched to Loxone products: The wires are available in colors that perfectly fit various Loxone applications.
• Pre-braided: Thanks to the braided single-wire design, no ferrules are needed, saving time.
• Specifications:
  • Length: 100 meters
  • Thickness: 2 x 0.6 mm

Overview

These connection wires are specially tailored to the distribution boxes of Loxone Smart Homes. The braided design eliminates the need for ferrules, ensuring more efficient installation. The colors are adapted to different applications, preventing connection errors.

Recommended color usage:

• Blue-white: For Loxone Link.
• Green-white: For Loxone Tree.
• Orange-white: For the 24V power supply.

Because the wires and clamps share the same color, incorrect connections are significantly reduced.

Technical details

• Thickness: 2 x 0.6 mm
• Class: Cl.1
• Nominal voltage: Up to 25V
• Number of cores: 2
• Insulation: PVC
• Copper weight: 0.56 kg / 100 m
• Permitted processing outside temperature:
  • In motion: -5...50°C
  • Fixed connection: -40...70°C
• Usable as outdoor cable: No

Product Datasheet
More information can be found in the Product Datasheet.
