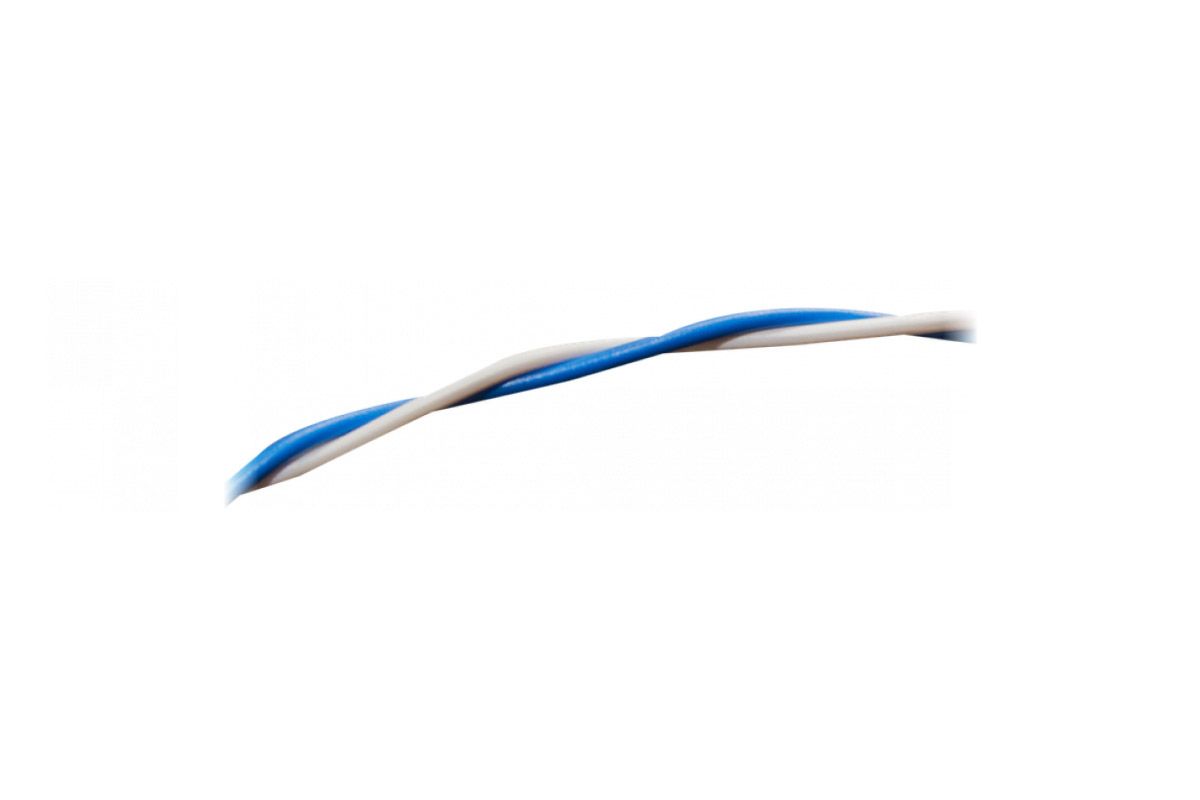

Loxone Panel Connection Wire Blue/White per 100m

Connection wire for the distribution cabinet

Features:

• Easily connect components.
• Colors matched to various Loxone products.
• Pre-twisted.
• No ferrules needed.
• Total length of 100 meters.
• 2 x 0.6 mm.

Overview

These connection wires are specifically designed for the distribution cabinets of Loxone Smart Homes. Thanks to the twisted single-wire design, no ferrules are required, saving significant time. The colors are adapted to different applications, making connections simpler and error-free.

Recommended color usage:

• Blue-white: Loxone Link.
• Green-white: Loxone Tree.
• Orange-white: 24V power supply.

Because the clamps and wires share the same color, incorrect connections are avoided.

Technical details

• Thickness: 2 x 0.6 mm
• Class: Kl.1
• Nominal voltage: Up to 25V
• Number of cores: 2
• Insulation: PVC
• Copper weight: 0.56 kg / 100 m
• Permitted processing outdoor temperature in motion: -5...50°C
• Permitted processing outdoor temperature fixed connection: -40...70°C
• Usable as outdoor cable: No

Additional information

For more technical details, you can consult the Product Datasheet:
Product Datasheet
