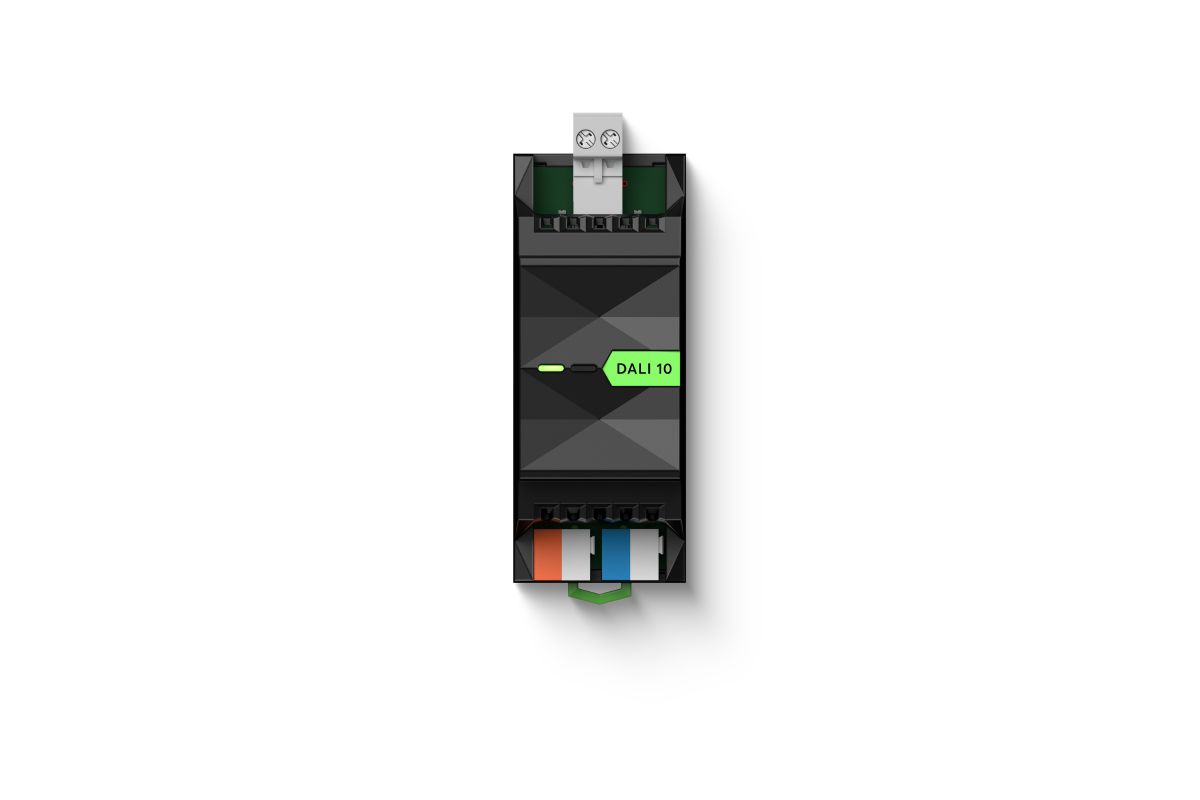

Loxone DALI Extension for 10 devices

DALI is a standardized wired interface for lighting that includes a wide range of manufacturers and fixtures. The Loxone DALI Extension integrates these products into the Loxone ecosystem and can control up to 10 DALI devices.

Features:

• Up to 10 DALI devices / 16 groups
• Up to 300 m cable length
• Supports DALI device types 0-8
• Supports DALI-2 instance types 1-4
• Integrated switchable power supply
• Simple and complete configuration in Loxone Config
• DALI-2 certified (supports DALI-2 sensors and fixtures, does not support DALI sensors)

Technical details:

• Supply voltage: 12 ... 28VDC
• DALI:
  • DALI devices: max. 10 devices / 16 groups
  • DALI types: supported DALI device types: 0-8; supported DALI-2 instance types: 1-4
  • Bus length: max. 300m / 985ft at 1.5mm²
  • Bus topologies: Bus, Line, Star, Tree
  • Bus voltage: High: 16V, Low: 0V (typ.)
  • Bus power: guaranteed: 240mA; max. 250mA
• Product dimensions: 35.4x88x57mm / 1.4x3.46x2.24” (LxWxH)
